WATER METER MODEL DELTA-SJ-SDC
Click on image to enlarge

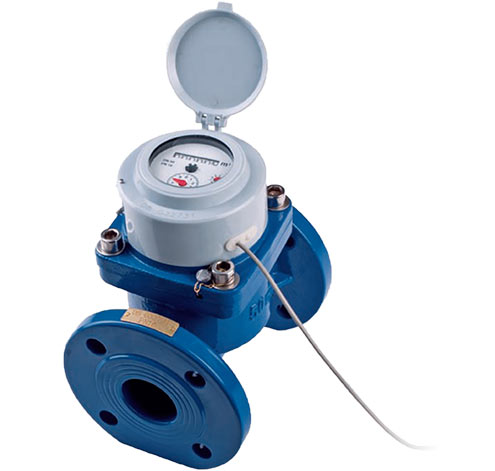

Irrigation impeller water meter - dry dial
DELTA-SJ-SDC can work in presence of high flowrates causing negligible head-loss.
The dial plate and the straight reading type totalizer are located in a sealed, dry, under vacuum housing. The water meter DELTA-SJ-SDC is pre-equipped for application of a pulse emitter reed switch type. The magnetic type movement transmission is protected against external magnetic fields by a suitable iron screen.
Easy maintenance is assured by the interchangeable mechanism construction.
It can be installed on horizontal or vertical pipes.
TECHNICAL DATA AND DIMENSIONS
GAUGE |
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
Qmax |
m³/h |
70 |
100 |
150 |
250 |
350 |
500 |
900 |
1200 |
1600 |
Qn |
m³/h |
35 |
50 |
75 |
125 |
175 |
250 |
450 |
600 |
800 |
Qt |
m³/h |
10.5 |
15 |
22.5 |
37.5 |
52.5 |
75 |
135 |
180 |
240 |
Qmin |
m³/h |
2.8 |
4 |
6 |
10 |
14 |
20 |
36 |
48 |
64 |
PN |
bar |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
Pressure drop |
bar |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
Minimum reading |
lt |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
50 |
50 |
Maximum reading |
m³ |
10^7 |
10^7 |
10^7 |
10^7 |
10^7 |
10^7 |
10^7 |
10^8 |
10^8 |
Weight |
Kg |
10.50 |
12.00 |
13.00 |
17.50 |
21.50 |
33.00 |
47.00 |
70.00 |
85.00 |
L |
mm |
200 |
200 |
225 |
250 |
250 |
300 |
350 |
450 |
500 |
H |
mm |
160 |
175 |
196 |
215 |
245 |
280 |
330 |
395 |
450 |
